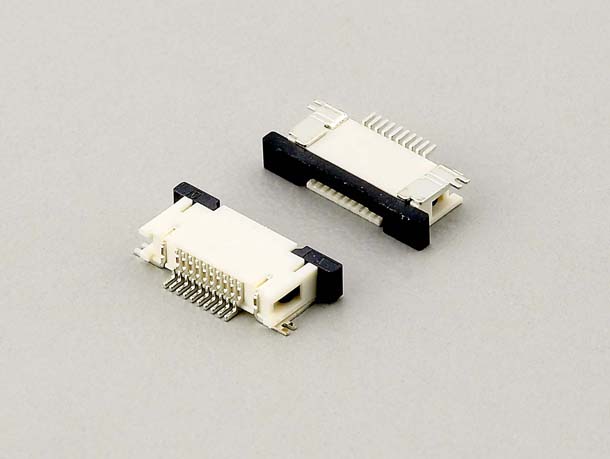

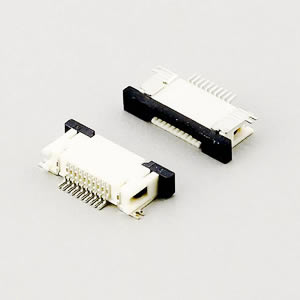

  • FP4ZLUxxTT0T - SMT Side Entry Upper Contact - Jaws Co., Ltd.

  • FP4ZLUxxTT0T

    SMT Side Entry Upper Contact

    Product Brand / 0.50 mm


    PDF

Description

Specifications:

Sizes 03 To 60 Pin.
For 0.3mm Thickness FFC/FPC.
Voltage:50v Max.
Current:0.5a Max.
Contact Resistance 20 Milliohms Max.
Insulation Resistance:50 Megohms Min.
Dielectric Withstanding Voltage 250V AC
Temperature: -40°C To 85°C
Housing High-Temp. Thermoplastic, UL 94V-0.
Actuator High-Temp. Thermoplastic. UL94V-0.
Contact: Phosphor Bronze. Plating Tin/Lead.
Holddown: Brass. Plating Tin/Lead.


Supplier Information

Jaws Co., Ltd.

TEL : 886-2-26922898 FAX : 886-2-26922618
7F, No.31, Lane 169, Kang Ning St., Hsichih, New Taipei City, Taiwan 221
Web-Site : http://www.jaws.com.tw/
E-Mail : sales@jaws.com.tw
