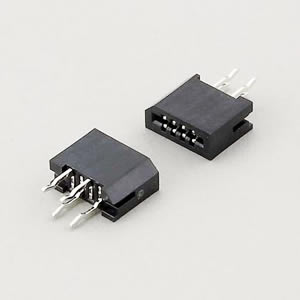

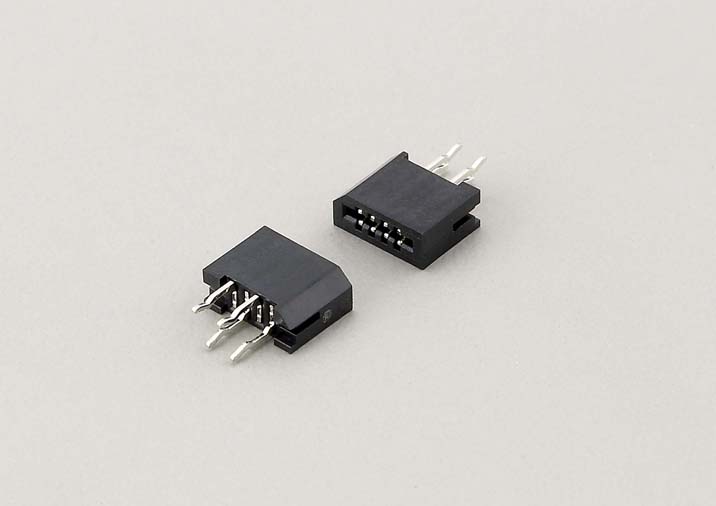

  • FP3LDTxxTT1T - Straight Special Layout Dual Contact - Jaws Co., Ltd.

  • FP3LDTxxTT1T

    Straight Special Layout Dual Contact

    Product Brand / 1.00 mm


    PDF

Description

Specifications:

Current Rating : 0.5A
Voltage Rating : 50V AC
Insulation Resistance : 1000 MΩ min.
Contact Resistance : 30 mΩ max.
Dielectric Withstanding : AC 500V min.
Operating Temperature : -40°C ~ +105°C
Contact Material : Phosphor Bronze
Insulator Material : Nylon-6T (H.F.), UL 94V-0 (Black)
Finish : Tin plated Packing : Tube
