  • Chien Shern Enterprise Co Ltd - logo

  • Chien Shern Enterprise Co Ltd

  • Interconnects Connectors Connector housings
  • CH4257, CH4257S-03 - 0.165

  • CH4257, CH4257S-03

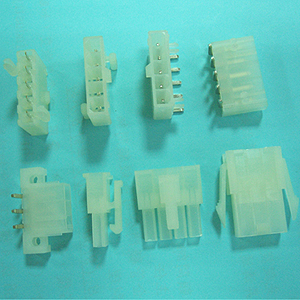

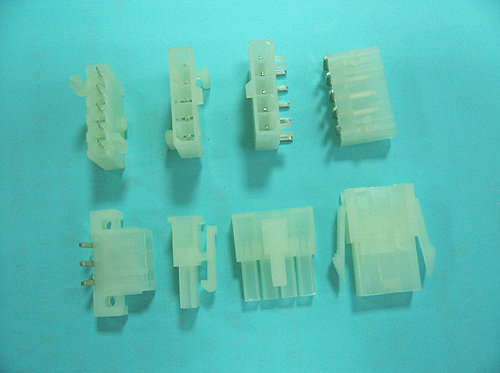

    0.165"(4.20mm) Pitch Power Connectors Housing Connector - Single Row


    CH4257

Description

CH4257 Series, CH4257S-03

  • Poles: 2 ~ 12
  • Material:NYLON 66 UL 94V-2
  • Suitable CT4201 series terminal
  • Mates with CH4259 CW4266S CW4269R series

Specifications

  • Current rating: 7A AC, DC
  • Voltage rating: 250V AC, DC
  • Temperature range: -25℃ ~ +85℃
  • Insulation resistance: 1,000MΩ min.
  • Withstand voltage: 1,500 AC/minute

Supplier Information

Chien Shern Enterprise Co Ltd

TEL : 886-2-22839012 FAX : 886-2-22881063
3F, No. 1, Lane 114, Ho Ping Rd., Lu Chou City, Taipei Hsien, Taiwan.
Web-Site : http://www.chienshern.com.tw
E-Mail : chs.connect@msa.hinet.net
