CI2540

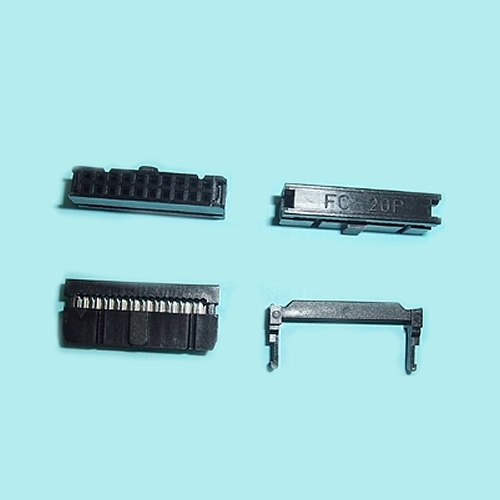

0.100"(2.54mm) Pitch Flat Cable IDC Socket
Description
CI2540-xxBBY3G Series
- Designed to mate with 0.64mm square dual row headers.
- Insulator Material: Standard: P.B.T UL94V-0 Black
- Contact Material: Brass or Phosphor bronze,
- Contact Plated: gold flash over nickel.
- Mates with W330 CW2545 CW2541 series Header
Specifications
- Current rating: 1A AC, DC
- Voltage rating: 250V AC, DC
- Temperature range: -40℃ ~ +105℃
- Insulation resistance: 1,000MΩ min.
- Withstand voltage: 500V AC/minute
