  • Chien Shern Enterprise Co Ltd - logo

  • Chien Shern Enterprise Co Ltd

  • Interconnects Connectors Connector housings

Description

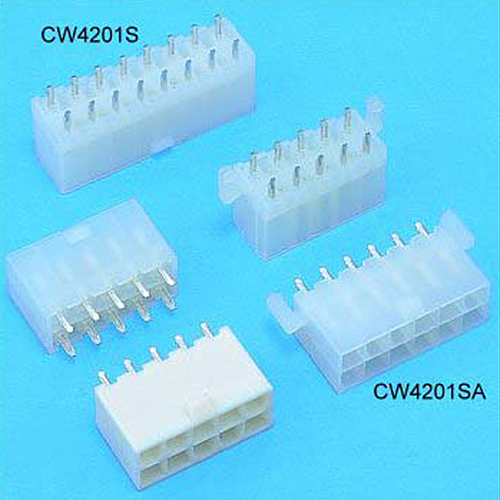

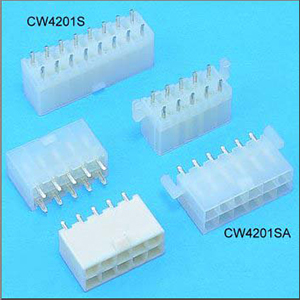

CW4201S, CW4201SA Series

  • Poles: 2-24
  • Material: Insulator: NYLON66 UL94V-2
  • Contact: brass,tin plated 60u"
  • Mates with CH4201 series housing

Specifications

  • Current rating: 7A AC, DC
  • Voltage rating: 250V AC, DC
  • Temperature range: -25℃ ~ +85℃
  • Insulation resistance: 1,000MΩ min.
  • Withstand voltage: 1500 AC/minute
  • Applicable PC board thickness: 0.063" (1.6mm)

Supplier Information

Chien Shern Enterprise Co Ltd

TEL : 886-2-22839012 FAX : 886-2-22881063
3F, No. 1, Lane 114, Ho Ping Rd., Lu Chou City, Taipei Hsien, Taiwan.
Web-Site : http://www.chienshern.com.tw
E-Mail : chs.connect@msa.hinet.net
