  • Chien Shern Enterprise Co Ltd - logo

  • Chien Shern Enterprise Co Ltd

  • Interconnects Connectors Wire To Board connectors

Description

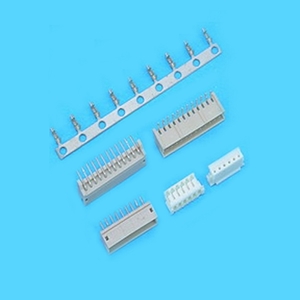

W1500 Series

  • Poles : 2 ~ 13
  • Material : Insulator : NYLON UL94V-0
  • Contact : 0.5mm(.020")Round Pin,Boass,Tin Plated
  • Mates with CH1500 Series Housing

Specifications

  • Current Rating : 0.7A AC, DC
  • Voltage Rating : 50V AC, DC
  • Temperoture Range : -25℃ ~ +85℃
  • Insulation Resistance : 500MΩ Min.
  • Withstand Voltage : 500V / Minute
  • Applicable PC Board Thickness : .047(1.2mm)

Supplier Information

Chien Shern Enterprise Co Ltd

TEL : 886-2-22839012 FAX : 886-2-22881063
3F, No. 1, Lane 114, Ho Ping Rd., Lu Chou City, Taipei Hsien, Taiwan.
Web-Site : http://www.chienshern.com.tw
E-Mail : chs.connect@msa.hinet.net
