  • CW2545 - 0.100

  • CW2545

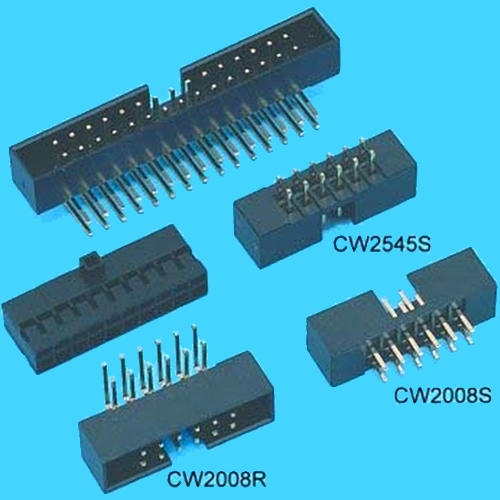

    0.100"(2.54mm) Pitch Dual Row Box Header - DIP type


    CW2545

Description

CW2545 Series

  • Poles: 2x3-2x32
  • Material: Insulator: PBT UL94V-2 Black
  • Contact: 0.64mm(0.025") square pin, brass, gold plated
  • Mates with CH2545 or CH330A series housing

Specifications

  • Current rating: 3A AC, DC
  • Voltage rating: 250V AC, DC
  • Temperature range: -25℃ ~ +85℃
  • Insulation resistance: 1,000MΩ min.
  • Withstand voltage: 1000 AC/minute
  • Applicable PC board thickness: 0.063" (1.6mm)
