- Interconnects Connectors Wire To Board connectors
-
-

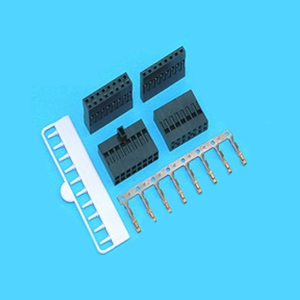

CH330/CT328/CK328
0.100"(2.54mm)Pitch -Housing and Terminal
Description
CH330 / CT328 / CK328 Series
- Ploes : 2x2 ~ 2x40
- Material : NORYL UL94-V1, Black
- Suitable CT328 or CT328B Series Terminal
- Mates With CH330 For CW330, CH330A For CW2545 Series
Specifications
- Current Rating : 3A AC,DC
- Voltage Rating : 250V AC, DC
- Temperature Range : -25℃ ~ +85℃
- Insulation Resistance : 1,000MΩ Min.
- Withstand Voltage : 800V AC / Minute
Supplier Information
Chien Shern Enterprise Co Ltd
TEL : 886-2-22839012 FAX : 886-2-228810633F, No. 1, Lane 114, Ho Ping Rd., Lu Chou City, Taipei Hsien, Taiwan.
Web-Site : http://www.chienshern.com.tw
E-Mail : chs.connect@msa.hinet.net
