  • Chien Shern Enterprise Co Ltd

  • Interconnects Connectors Wire To Board connectors
  • CW256 - 0.100

  • CW256

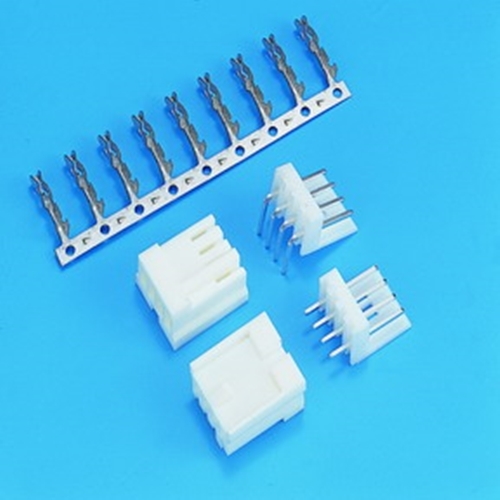

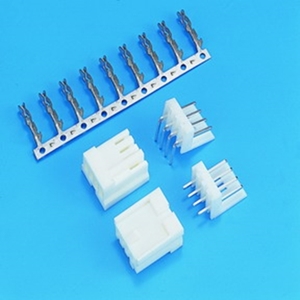

    0.100"(2.5mm)Pitch Pin Headers


    CW256

Description

CW256 Series

  • Poles: 4
  • Material : Insulator : NYLON UL 94V-2
  • Contact : 0.64mm(.025") Square Pin,Brass, Tin Plated 60u"
  • Mates With CH256 Series Housing

Specifications

  • Current Rating : 3A AC, DC
  • Voltage Rating : 250V AC, DC
  • Temperature Range : -25℃ ~ +85℃
  • Insulation Resistance : 1,000MΩ Min.
  • Withstand Voltage : 800V AC / Minute
  • Applicable PC Board Thickness :.063"(1.6mm)

Supplier Information

Chien Shern Enterprise Co Ltd

TEL : 886-2-22839012 FAX : 886-2-22881063
3F, No. 1, Lane 114, Ho Ping Rd., Lu Chou City, Taipei Hsien, Taiwan.
Web-Site : http://www.chienshern.com.tw
E-Mail : chs.connect@msa.hinet.net
