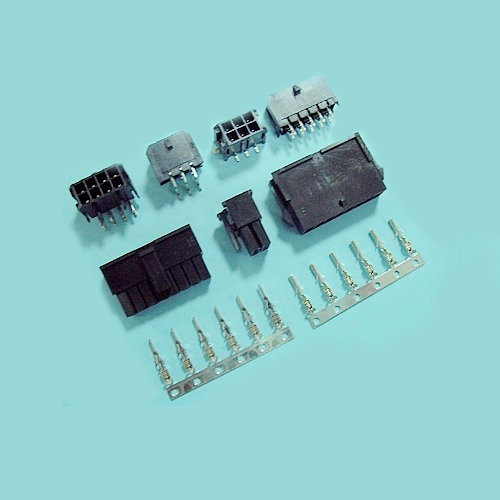

W3045SP, W3045RP
3.0mm pitch Dual Row Thru Hole Header ASS'Y - Double Row
Description
W3015SP, W3015RP Series
- Poles:2-24
- Material:Insulator: NYLON 46 UL94V-0 Black
- Contact:0.64mm square pin, Brass Tin plated
- Mates with CH3025 series Housing
Specification
- Current rating: 5A AC, DC
- Voltage rating: 250V AC,DC
- Temperature range:-40℃~+105℃
- Insulation resistance: 1000MOhms min
- Withstand voltage: 1500V AC/minute
