  • Chien Shern Enterprise Co Ltd - logo

  • Chien Shern Enterprise Co Ltd

  • Interconnects Connectors FPC/FFC connectors

Description

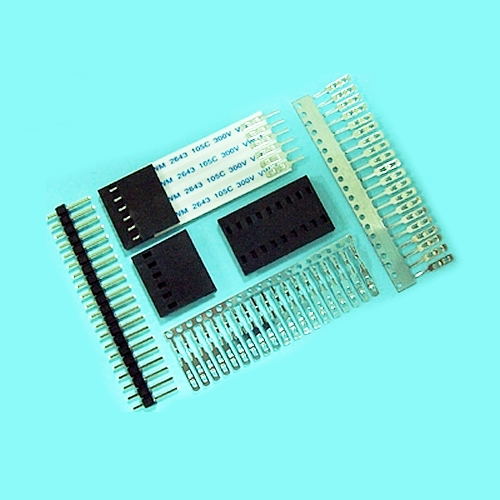

CH2542A / CT2542 Series

Housing

  • Poles:2-25
  • Material: PBT UL94V-0 Black
  • Suitable CT2542 series terminal
  • Mates with W328 series Header

Specifications

  • Current rating: 3A AC, DC
  • Voltage rating: 250V AC, DC
  • Temperature range: -25℃~ +85℃
  • Insulation resistance: 1,000MΩ min
  • Withstand voltage: 1,000V AC/Minute

CT2542 Series

Crimp Terminal Female

  • Mates 0.64mm square pin.
  • Material: Phosphor Bronze
  • Finished: Tin Plated
  • Reel Quantity: 30Kpcs
  • Tolerance: +-0.1mm
