  • Chien Shern Enterprise Co Ltd - logo

  • Chien Shern Enterprise Co Ltd

  • Interconnects Connectors FPC/FFC connectors

Description

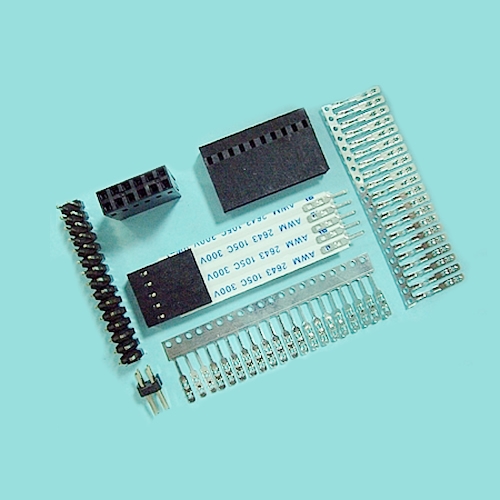

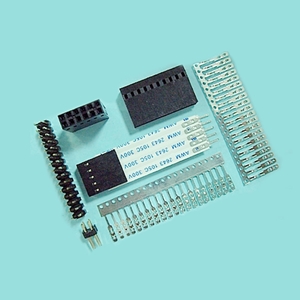

HF2545A Series

  • Poles: 2x2-2x25
  • Material: PBTP UL94V-0 Black
  • Suitable CT2542 series terminal
  • Mates with CW330 series Header

Specifications

  • Current rating: 3A AC, DC
  • Voltage rating: 250V AC, DC
  • Temperature range:-25℃~+85 ℃
  • Insulation resistance:1,000MΩ min.
  • Withstnad voltage:1,000V AC/minute

CT2542 Series

Crimp Terminal Female

Mates 0.64mm square pin.

  • Material : Phosphor Bronze
  • Finished: Tin Plated
  • Reel Quantity: 30,000 pcs
  • Unit: mm
  • Tolerance: +-0.1mm

Supplier Information

Chien Shern Enterprise Co Ltd

TEL : 886-2-22839012 FAX : 886-2-22881063
3F, No. 1, Lane 114, Ho Ping Rd., Lu Chou City, Taipei Hsien, Taiwan.
Web-Site : http://www.chienshern.com.tw
E-Mail : chs.connect@msa.hinet.net
