  • CH3020S / CT3020T - .118

  • CH3020S / CT3020T

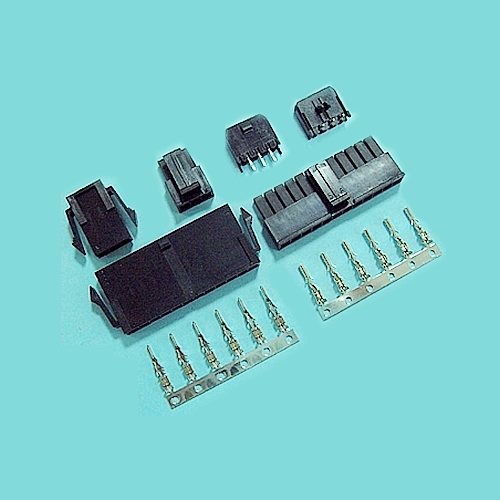

    .118"(3.0mm) Pitch Wire to Board Connectors - Housing and Terminal - Single Row


    CH3020S / CT3020

Description

CH3020S Series

  • Poles: 2-12
  • Material: Polyester, UL94V-0 Black
  • Suitable CT3020 series terminal
  • Mates with CH3025S series

Specifications

  • Current rating: 5A AC, DC
  • Voltage rating: 250V AC, DC
  • Temperature range:-25℃~+85℃
  • Insulation resistance:1,000MOhms min.
  • Withstand voltage: 1,500V AC/minute

CT3020T series

  • Material: Phosphor Bronze
  • Finished: Tin-plated
  • Used in CH3020S series housings
  • Wire range: AWG#22~28
  • Thickness: 0.20mm
  • Q'TY:10,000pcs/reel

Supplier Information

Chien Shern Enterprise Co Ltd

TEL : 886-2-22839012 FAX : 886-2-22881063
3F, No. 1, Lane 114, Ho Ping Rd., Lu Chou City, Taipei Hsien, Taiwan.
Web-Site : http://www.chienshern.com.tw
E-Mail : chs.connect@msa.hinet.net
