  • CH3025S / CT3025

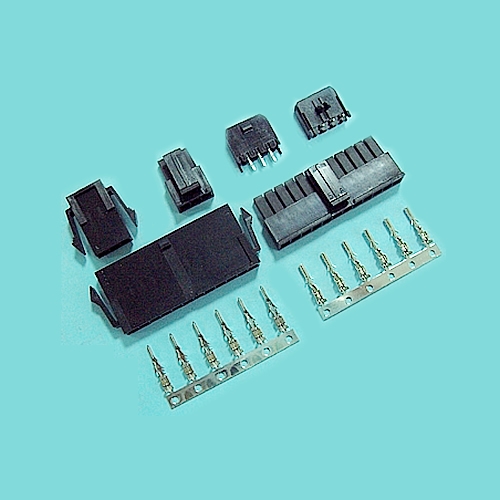

    .118"(3.0mm) Pitch Wire to Board Connectors - Housing and Terminal - Single Row


    CH3025S / CT3025

Description

CH3025S Series

  • Poles:3-12
  • Material: Polyester, UL94V-0 Black
  • Suitable CT3025 series terminal
  • Mates with CH3020S/W3015 series Header

Specifications

  • Current rating: 5A AC, DC
  • Voltage rating: 250V AC, DC
  • Temperature range:-25℃~+85℃
  • Insulation resistance: 1,000MOhms min.
  • Withstand voltage: 1500V AC/minute

CT3025 series

  • Material: Phosphor Bronze
  • Finished: Tin-plated 60u"
  • Used in CH3025/CH3025S series housings
  • Wire range: AWG#2~28
  • Thickness: 0.20mm
  • Q'TY:10,000pcs/reel
