  • CH393 / CT393 / CK393 - 0.156

  • CH393 / CT393 / CK393

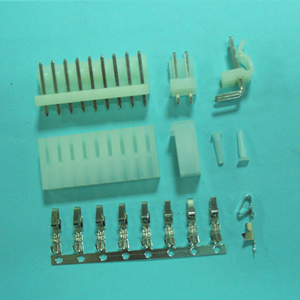

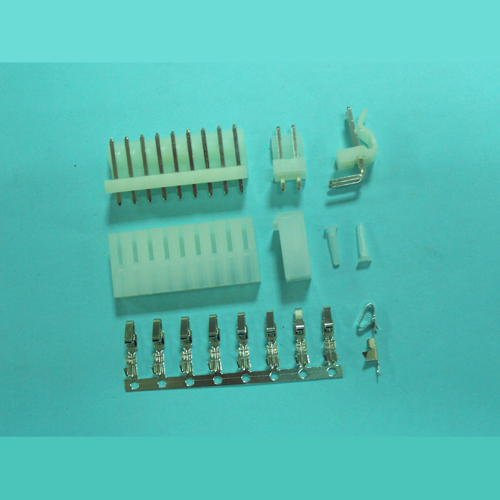

    0.156"(3.96mm) Pitch -Housing and Terminal


    CH393

Description

CH393 / CT393 / CK393 Series

  • Poles : 2-20
  • Material : NYLON 66 UL 94V-2
  • Suitable CT393 series terminal
  • Mates With CW393 Series

Specifications:

  • Current Rating : 5A AC, DC
  • Voltage Rating : 250V AC, DC
  • Temperature Range : -25℃ ~+120℃
  • Insulation Resistance : 1,000MΩ Min.
  • Withstand Voltage : 1,500V AC / Minute
