  • CH3962 / CT3962 - 0.156

  • CH3962 / CT3962

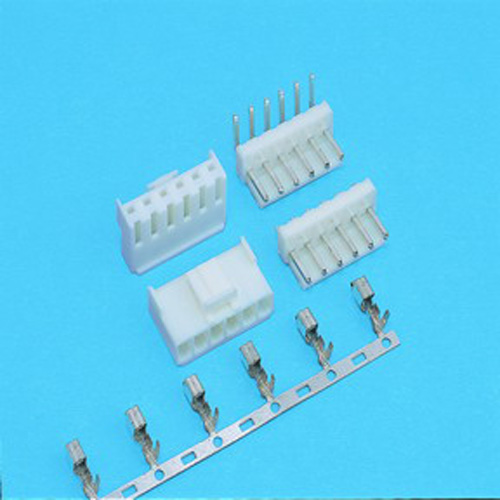

    0.156"(3.96mm) Pitch Wire to Board Connectors - Housing and Terminal


    CH3962 / CT3962

Description

CH3962 / CT3962 Series

  • Poles: 2-14
  • Material: NYLON 66 UL 94V-2
  • Suitable CT3962 series terminal
  • Mates with CW3962 series

Specifications:

  • Current rating: 5A AC, DC
  • Voltage rating: 250V AC, DC
  • Temperature range: -25℃~+120℃
  • Insulation resistance: 1,00000MΩ min.
  • Withstand voltage: 1,500V AC/minute
