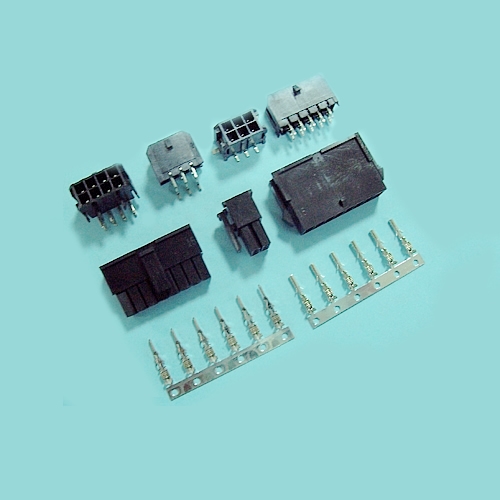

CH3025 / CT3025
0.118"(3.0mm) Pitch Housing and Terminal - Double Row
Description
CH3025 / CT3025 Series
- Poles: 2-24
- Material: NYLON66 UL94V-0 BLACK
- Suitable CT3025 series terminal
- Mates with CH3020 series
Specifications
- Current rating: 3A AC, DC
- Voltage rating: 250V AC, DC
- Temperature range: -25℃~+85℃
- Insulation resistance: 1,000MΩ min.
- Withstand voltage: 1,500V AC/minute
Supplier Information
Chien Shern Enterprise Co Ltd
TEL : 886-2-22839012 FAX : 886-2-228810633F, No. 1, Lane 114, Ho Ping Rd., Lu Chou City, Taipei Hsien, Taiwan.
Web-Site : http://www.chienshern.com.tw
E-Mail : chs.connect@msa.hinet.net
