  • HF2545B/TF2543L - .100

  • HF2545B/TF2543L

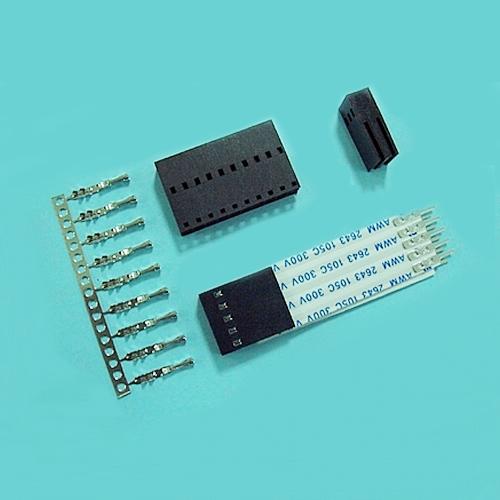

    .100"(2.54mm) Pitch Dual Row FFC/FPC connectors - Housing and Terminal


    HF2545B-TF2543L

Description

HF2545B Series

  • Poles: 2x2-2x25
  • Material: PBTP UL94V-0 Black
  • Suitable TF2543 series terminal
  • Mates with CW330 series Header

Specifications

  • Current rating: 3A AC, DC
  • Voltage rating: 250V AC, DC
  • Temperature range:-25℃~+85 ℃
  • Insulation resistance:1,000MΩ min.
  • Withstnad voltage:1,000V AC/minute

TF2543L Series

Crimp Terminal Female

Mates 0.64mm square pin.

  • Material : Phosphor Bronze
  • Finished: Tin Plated 60u"
  • Used in HF2543B, HF2545B series housings
  • Thickness: 0.2mm
  • Q'TY: 15,000 pcs/reel
