  • W201S - 0.079

  • W201S

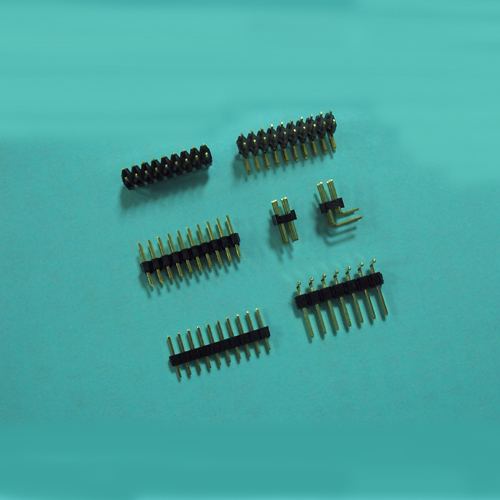

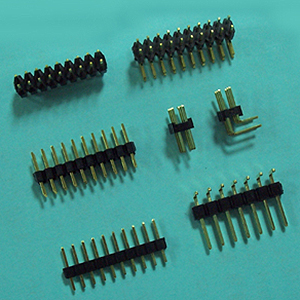

    0.079"(2.00mm)Pitch Single Row Board to Board Connector


    W201S W201S

Description

W201 Series

  • Poles: 2-40
  • Material: Insulator: PBTP UL 94V-1 Black
  • Contact: 0.50mm(0.20") square pin, brass, gold plated Gold Flash
  • Mates with CH202 CH204 CH206 series housing

Specifications

  • Current rating: 1A AC, DC
  • Voltage rating: 100V AC, DC
  • Temperature range: -25℃ ~ +85℃
  • Insulation resistance: 1,000MΩ min.
  • Withstand voltage: 500V AC/minute
  • Applicable PC board thickness: 0.063" (1.6mm)
  • Unspecified tolerance: ±0.25

Supplier Information

Chien Shern Enterprise Co Ltd

TEL : 886-2-22839012 FAX : 886-2-22881063
3F, No. 1, Lane 114, Ho Ping Rd., Lu Chou City, Taipei Hsien, Taiwan.
Web-Site : http://www.chienshern.com.tw
E-Mail : chs.connect@msa.hinet.net
