  • CH1251 - 0.049

  • CH1251

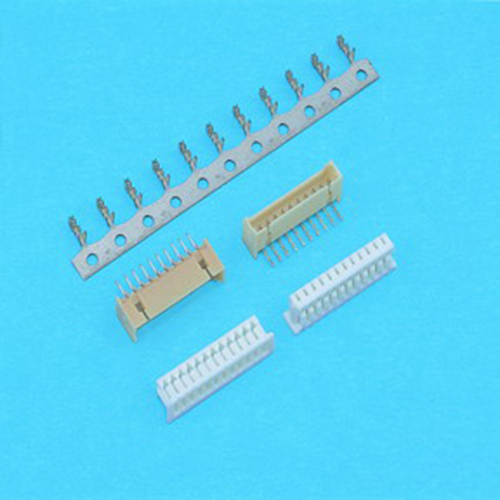

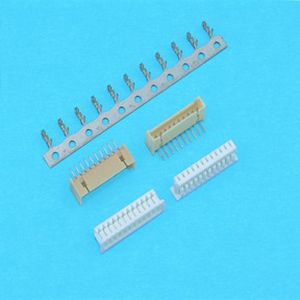

    0.049" (1.25mm) Pitch Wire to Board -Housing Connector


    CH1251

Description

CH1251 Series

  • Poles : 2-20
  • Material : PBT UL 84V-0 White
  • Suitable CT1251 Series Terminal
  • Mates With CW1251 Series Wafer

Specifications

  • Current Rating : 1A
  • Voltage Rating : 125V
  • Temperature Range : -25℃~ +85℃
  • Insulation Resistance : 100MΩ Min.
  • Withstand Voltage : 250V AC / Minute
