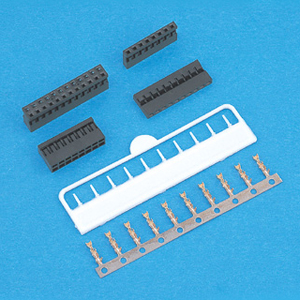

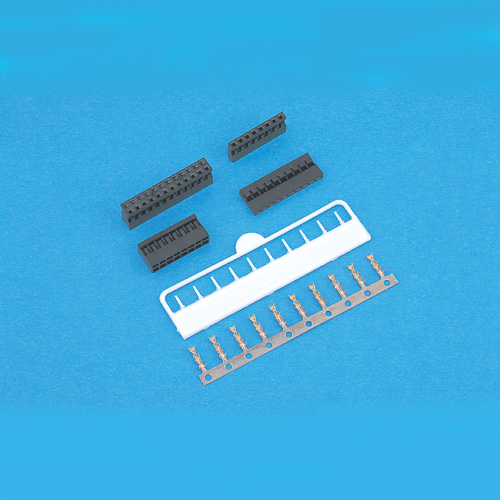

CH201 / CK201
0.079"(2.00mm)Pitch - Housing Connector
Description
CH201 / CK201 Series
- Poles : 2 ~ 30 / 2x2 ~ 2x25
- Material : NORYL-V1 Black
- Suitable CT201 Series Terminal
- Mates with CW201 Series Header
Specifications
- Current Rating : 1A AC, DC
- Voltage Rating : 100V AC, DC
- Temperoture Range : -25℃ ~ +85℃
- Insulation Resistance : 1,000MΩ Min.
- Withstand Voltage : 800V AC / Minute
Supplier Information
Chien Shern Enterprise Co Ltd
TEL : 886-2-22839012 FAX : 886-2-228810633F, No. 1, Lane 114, Ho Ping Rd., Lu Chou City, Taipei Hsien, Taiwan.
Web-Site : http://www.chienshern.com.tw
E-Mail : chs.connect@msa.hinet.net
