  • CH203 - 0.079

  • CH203

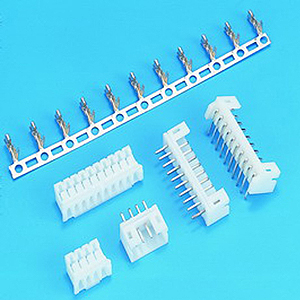

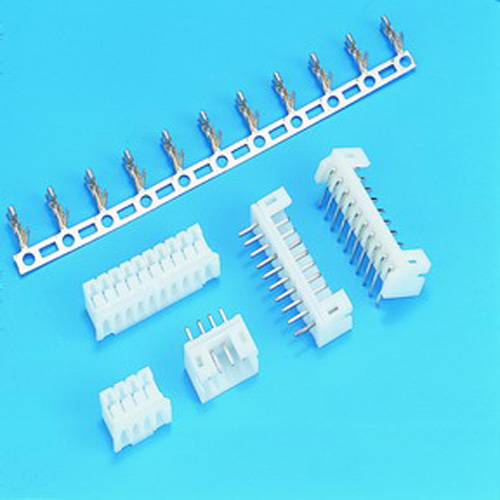

    0.079"(2.00mm)Pitch Wire to Board Housing Connector


    CH203

Description

CH203 / CT203 Series

  • Ploes : 2~20
  • Material : NYLON 66 UL94V-2
  • Suitable CT203 Series Terminal
  • Mates With CW203 Series Wafer

Specifications

  • Current Rating : 1A AC, DC
  • Voltage Rating : 150V AC, DC
  • Temperture Rating : -25℃ ~ +85℃
  • Insulation Resistance : 1,000MΩ Min.
  • Withstand Voltage : 800V AC / Minute

Supplier Information

Chien Shern Enterprise Co Ltd

TEL : 886-2-22839012 FAX : 886-2-22881063
3F, No. 1, Lane 114, Ho Ping Rd., Lu Chou City, Taipei Hsien, Taiwan.
Web-Site : http://www.chienshern.com.tw
