- Interconnects Connectors Connector housings
-
-
CH251 / CH251C / CK251
0.100"(2.54mm)Pitch -Housing Connector
Description

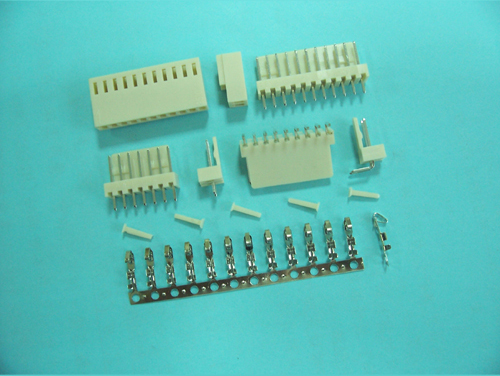

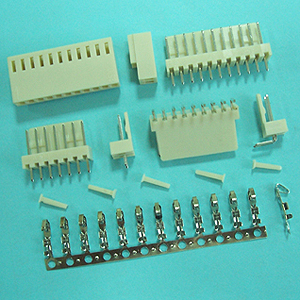

CH251 / CH251C / CK251 Series
- Ploes : 2 ~ 20
- Material : NYLON 66 UL 94V-2
- Suitable CT251Series Terminal
- Mates With CW251 Series Wafer
Specifications
- Current Rating : 3A AC, DC
- Voltage Rating : 250V AC, DC
- Temperature Range : -25℃ ~ +85℃
- Insulation Resistance : 1,000MΩ Min.
- Withstand Voltage : 1,000 AC / Minute
Supplier Information
Chien Shern Enterprise Co Ltd
TEL : 886-2-22839012 FAX : 886-2-228810633F, No. 1, Lane 114, Ho Ping Rd., Lu Chou City, Taipei Hsien, Taiwan.
Web-Site : http://www.chienshern.com.tw
E-Mail : chs.connect@msa.hinet.net
