  • CH328 / CT328 Series - 0.100

  • CH328 / CT328 Series

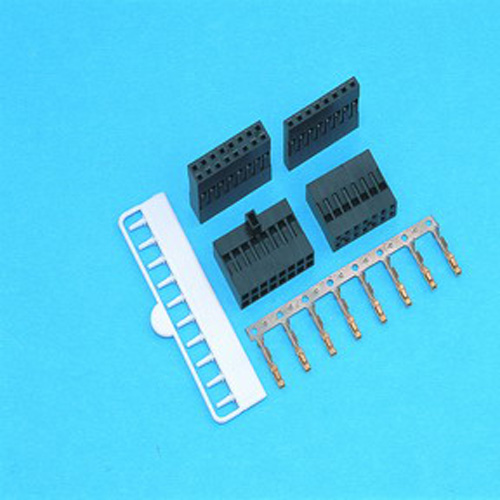

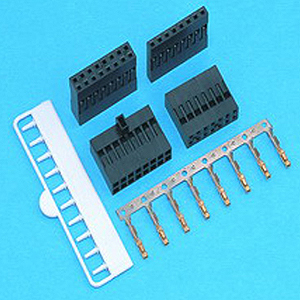

    0.100"(2.54mm)Pitch -Housing Connector


    CH328

Description

CH328 / CT328 Series

  • Ploes : 1 ~ 40 / 2x2 ~ 2x40
  • Material : NORYL UL94V-1 Black
  • Suitable CT328 or CT328B Series Terminal
  • Mates With CW328 Series Header

Specifications

  • Current Rating : 3A AC.,DC
  • Voltage Rating : 250V AC, DC
  • Temperature Range : -25℃ ~ +85℃
  • Insulation Resistance : 1,000MΩ Min.
  • Withstand Voltage : 800V AC / Minute
