  • Chien Shern Enterprise Co Ltd - logo

  • Chien Shern Enterprise Co Ltd

  • Interconnects Connectors Connector housings
  • CH396 - 0.200

  • CH396

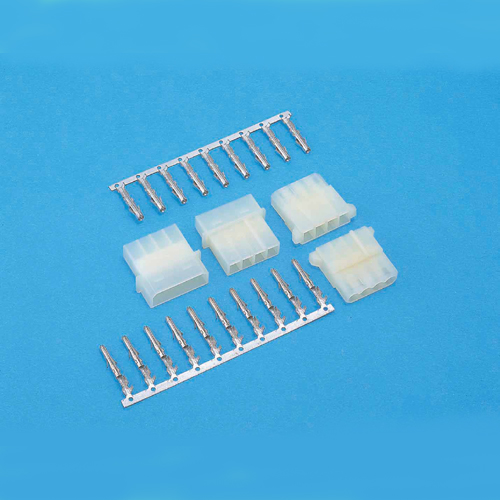

    0.200"(5.08mm)Pitch Power Connectors - Housing Connector


    CH396-04

Description

CH396 Series

  • Poles: 4
  • Material:NYLON 66 UL 94V-2
  • Suitable CT396H, CT398H series terminal

Specifications

  • Current rating: 5 AC, DC
  • Voltage rating: 250V AC, DC
  • Temperature range: -25℃ ~ +120℃
  • Insulation resistance: 1,000MΩ min.
  • Withstand voltage: 1,500 AC/minute

Supplier Information

Chien Shern Enterprise Co Ltd

TEL : 886-2-22839012 FAX : 886-2-22881063
3F, No. 1, Lane 114, Ho Ping Rd., Lu Chou City, Taipei Hsien, Taiwan.
Web-Site : http://www.chienshern.com.tw
E-Mail : chs.connect@msa.hinet.net
