  • CW325 - 0.098

  • CW325

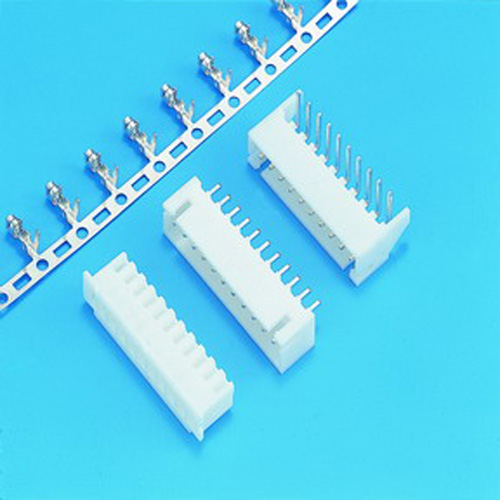

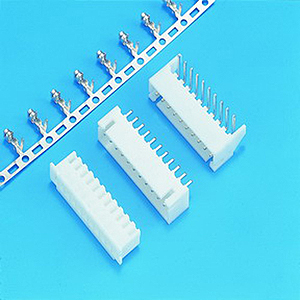

    0.098"(2.50mm)Pitch Single Row Headers - Wafer Connector


    CW325

Description

CW325 Series

  • Ploes : 2 ~ 20
  • Material : Insulator : NYLON UL 94V-2
  • Contact : 0.64mm(.025") Square Pin,Brass,Tin Plated 60u"
  • Mates With CH325 Series Housing

Specifications

  • Current Rating : 3A AC, DC
  • Voltage Rating : 250V AC, DC
  • Temperature Range : -25℃ ~ +85℃
  • Insulatipn Resistance : 1,000MΩ Min.
  • Withstand Voltage : 1,000 AC / Minute
  • Applicable PC Board Thickness : .063"(1.6mm)

Supplier Information

Chien Shern Enterprise Co Ltd

TEL : 886-2-22839012 FAX : 886-2-22881063
3F, No. 1, Lane 114, Ho Ping Rd., Lu Chou City, Taipei Hsien, Taiwan.
Web-Site : http://www.chienshern.com.tw
E-Mail : chs.connect@msa.hinet.net
