  • CW2543 - 0.100

  • CW2543

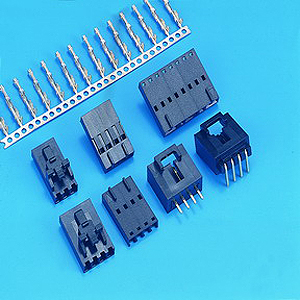

    0.100"(2.54mm) Pitch Single Row Headers - Wafer Connector


    CW2543

Description

CW2543 Series

  • Poles : 2 ~ 18
  • Material : Insulator : PBT UL94V-0 Black
  • Contact : 0.64mm(.025") Square Pin, Brass, Gold Plated
  • Mates With CH2543 Series Housing

Specifications

  • Current Rating : 2.5A AC, DC
  • Voltage Rating : 250V AC, DC
  • Temperature Range : -25℃ ~ +85℃
  • Insulation Resistance : 1,000MΩ Min.
  • Withstand Voltage : 600 AC / Minute
  • Appilcable PC Board Thickness : .063(1.6mm)

Supplier Information

Chien Shern Enterprise Co Ltd

TEL : 886-2-22839012 FAX : 886-2-22881063
3F, No. 1, Lane 114, Ho Ping Rd., Lu Chou City, Taipei Hsien, Taiwan.
Web-Site : http://www.chienshern.com.tw
E-Mail : chs.connect@msa.hinet.net
