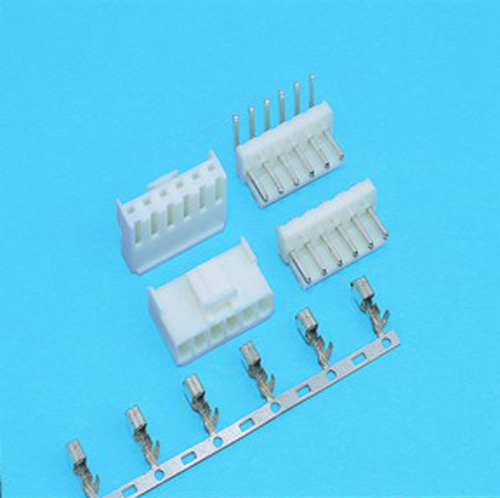

    0.156"(3.96mm) Pitch Single Row Header - Wafer Connector


    CW3962

Description

CW3962 Series

  • Poles: 2 ~ 14
  • Material: NYLON UL 94V-2
  • Contact: 1.14mm(.045") square pin. brass, tin plated 60u"
  • Mates with CH3962 series housing

Specifications

  • Current rating: 7A AC, DC
  • Voltage rating: 250V AC, DC
  • Temperature range: -25℃~+85℃
  • Insulation resistance: 1,000MΩ
  • Withstand voltage: 1,500V AC/minute
  • Applicable PC board thickness: .063"(1.6mm)

Supplier Information

Chien Shern Enterprise Co Ltd

TEL : 886-2-22839012 FAX : 886-2-22881063
3F, No. 1, Lane 114, Ho Ping Rd., Lu Chou City, Taipei Hsien, Taiwan.
Web-Site : http://www.chienshern.com.tw
