- Interconnects Connectors Pin headers
-
-
25408X1XXXXXXXX

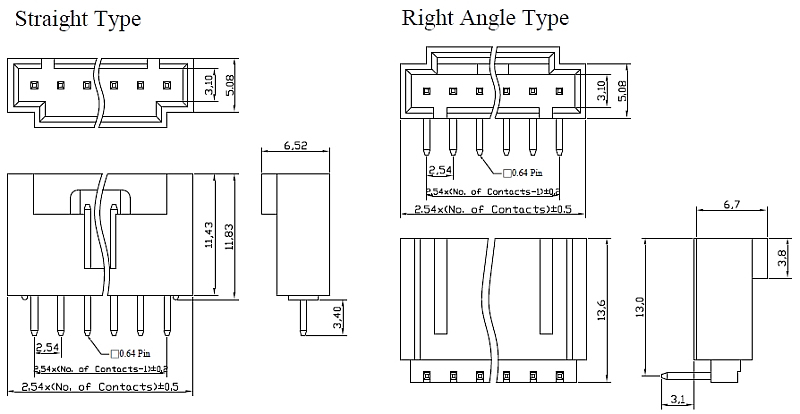

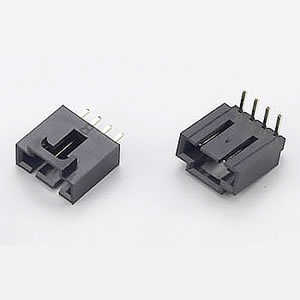

Straight and Right Angle Typ
Description
SPECIFICATIONS:
- INSULATOR: Polyester, UL94V-0
Standard: PBT - CONTACT: Brass.
- PLATING: Full Gold, Full Tin, Selective Plated.
- CURRENT RATING: 3A.
- WITHSTANDING VOLTAGE: 500V AC.
- INSULATION RESISTANCE (MIN.): 5000MΩ.
- CONTACT RESISTANCE (MAX.): 20mΩ.
- OPERATING TEMPERATURE: -40℃ ~ +105℃.
